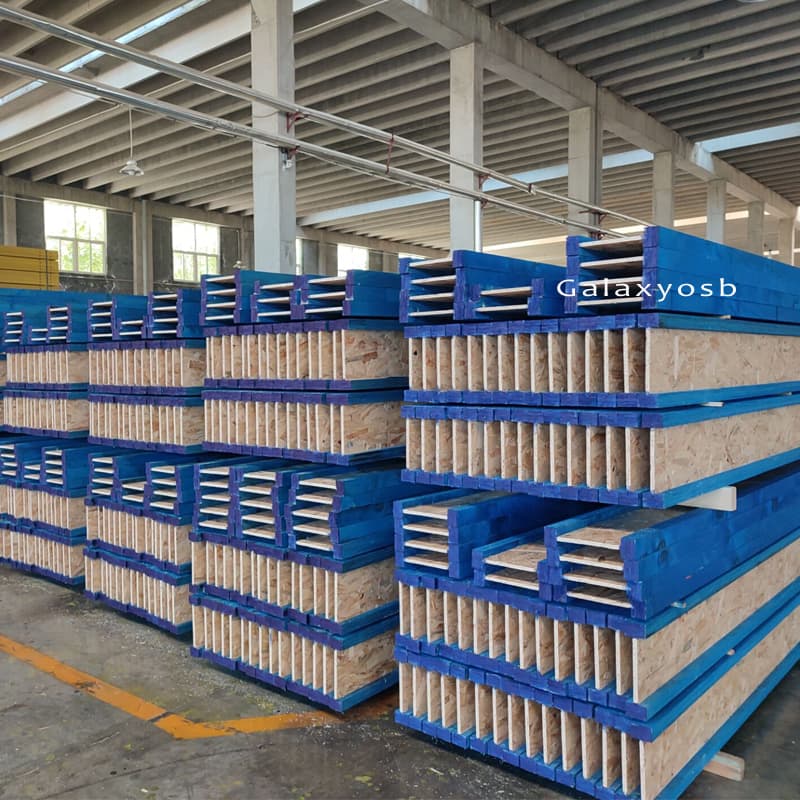

i joist
- Product Name:I-Joist beam
- Materiatl:plywoood or OSB+Radiate pine/Larch pine LVL
- Height:200/240/300/360mm,+/-0.5mm,or as request
- The thickness of Web:10mm/12mm,+/-1mm(or as request)
- Length:1000mm-6000mm,as request
- Glue:MR/E0/E1/E2/WBP/Melamine
- Application:Level formwork system, Vertical formwork system,
- Adjustable formwork system, Curve formwork system, Irregular formwork, etc.
- MOQ:3800-4200m per 40ft container
An I-joist, also known as an I-beam or engineered wood joist, is a structural component used in construction. It is shaped like the letter"I,"consisting of two horizontal flanges and a vertical web in between. The flanges are typically made of laminated veneer lumber (LVL) or solid wood, while the web is usually made of oriented strand board (OSB) or plywood.
Here are some key features and benefits of I-joists:
Strength and Stability: I-joists provide excellent strength and stiffness, allowing for longer spans and reduced deflection compared to traditional solid wood joists.
Lightweight: Despite their strength, I-joists are lighter than solid wood beams of the same size, making them easier to handle and install.
Dimensional Consistency: I-joists are manufactured to precise specifications, ensuring uniform dimensions and eliminating many of the inconsistencies found in solid wood.
Efficiency: The use of engineered wood products, like the web made from OSB or plywood, maximizes the efficient use of wood resources.
Versatility: I-joists can be used in various applications, including floor joists, roof rafters, and wall studs, providing flexibility in design and construction.
However, I-joists also require careful handling and installation to prevent damage, and they may need additional fire protection in some building codes due to the materials used in their construction. Send inquery
